Outdoor Fixed LED Displays

Outdoor Fixed LED Display

Outdoor LED displays are powerful tools for communication, entertainment, and artistic expression, capable of captivating audiences in any weather condition.

Feature Details

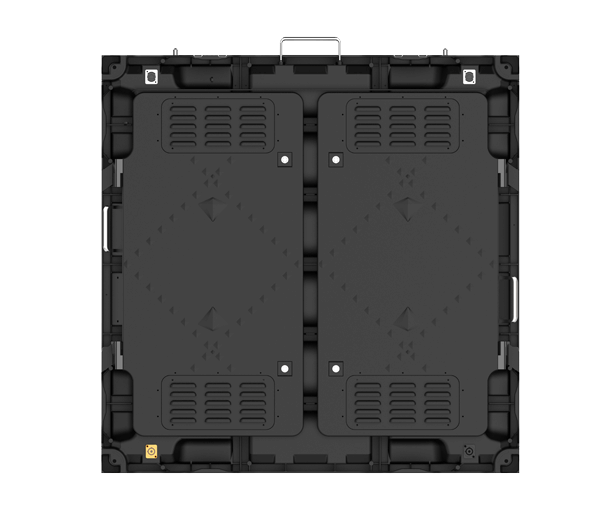

  • Lighter: The magnesium alloy box is 15kg/m2 lighter than the iron box and 20% lighter than the iron box. It saves transportation space, reduces the transportation weight of buildings and steel structures, and reduces the requirements for bearings.
  • Multi-function: advertising fixed installation, adding flying poles, connectors and quick locks can be used for leasing
  • Cost-effective: Magnesium alloy cabinet, corrosion-resistant, rust-proof
  • Standard module: P3 to P10 outdoor modules are available
  • Higher precision: CNC machining, contour tolerance ±0.1mm, flatness tolerance <0.5mm. One-piece molding, no deformation, quick assembly

Key Features & Considerations

Pixel Pitch: Determines the resolution and visual clarity of the display. Smaller pixel pitch = higher resolution.

Brightness: Measured in nits, higher brightness is needed for sunlight visibility.

Protection Rating: IP rating indicates resistance to water and dust (e.g., IP65 is suitable for most outdoor environments).

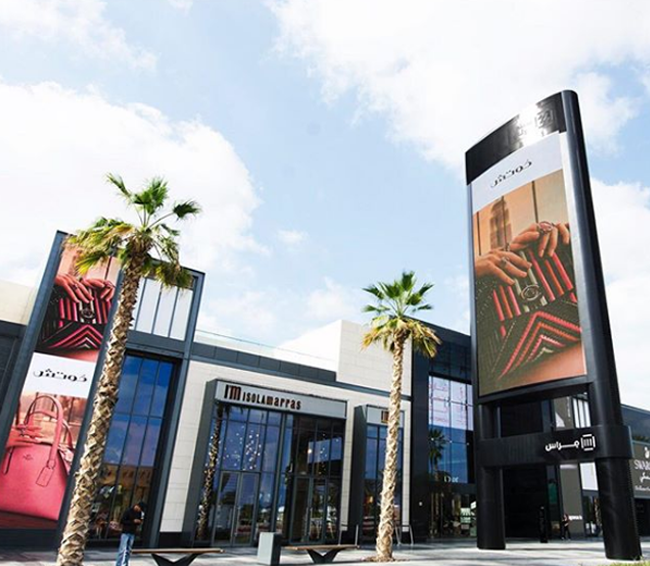

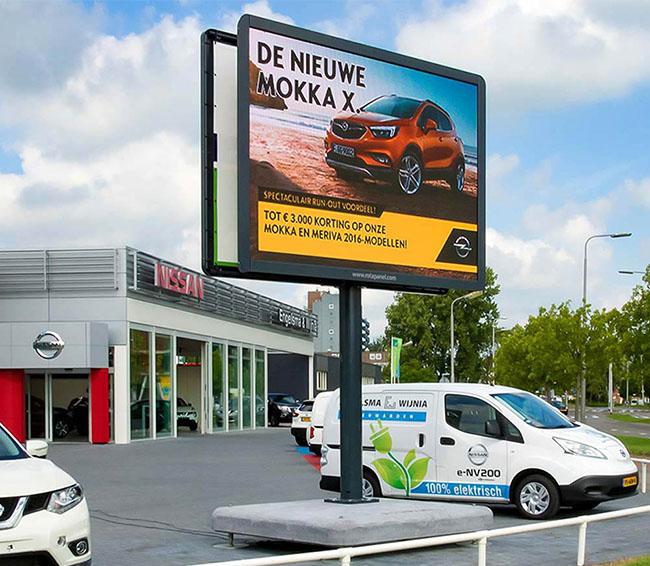

Applications of Outdoor LED Displays:

Digital Signage: Eye-catching displays for advertising, promotions, news updates, and wayfinding.Event & Concert Backdrops: Create stunning visuals for outdoor festivals, concerts, and events.Stadium & Arena Displays: Inform fans with scores, replays, and announcements.

Products Parameters

The parameter table is part of the parameters, for more information, please contact us

Specifcations
  Model P 2.5 P 3 P 4 P 5 P 6 P 8 P 10
  Pixel Pitch 2.5mm 3mm 4 mm 5 mm 6 mm 8 mm 10 mm
  Pixel Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD2727 SMD3535 SMD3535
  Pixel Density(pixels/m²) 160000 111111 62500 40000 27777 15625 10000
  Module Size(mm) 320x160 192*192 256*128 320*160 192*192 320*160 320*160
  Module Resolution 128x64dot 64x64dot 64x32dot 64x32dot 32x32dot 40x20dot 32x16dot
  Cabinet Size(mm) 960x960 960x960 1024x1024 960x960 960x960 960x960 960x960
 Cabinet Resolution 384x384dot 320x320dot 256x256dot 192x192dot 160x160dot 120x120dot 96x96dot
 Gray Scale 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
 Max Power Consumption 800W/m²
 Average Power Consumption 260W/m²
  Operating Temp/Humidity -20℃-60℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Brightness 600 - 800 nits
  Viewing Angle 140°/140°
  Expected LED Lifetime (Max) 100,000 Hrs
 Maintenance Front Service

Why choose us?

We have 20 years of LED display development, manufacturing and engineering construction experience, to provide customers with quality products and services.
