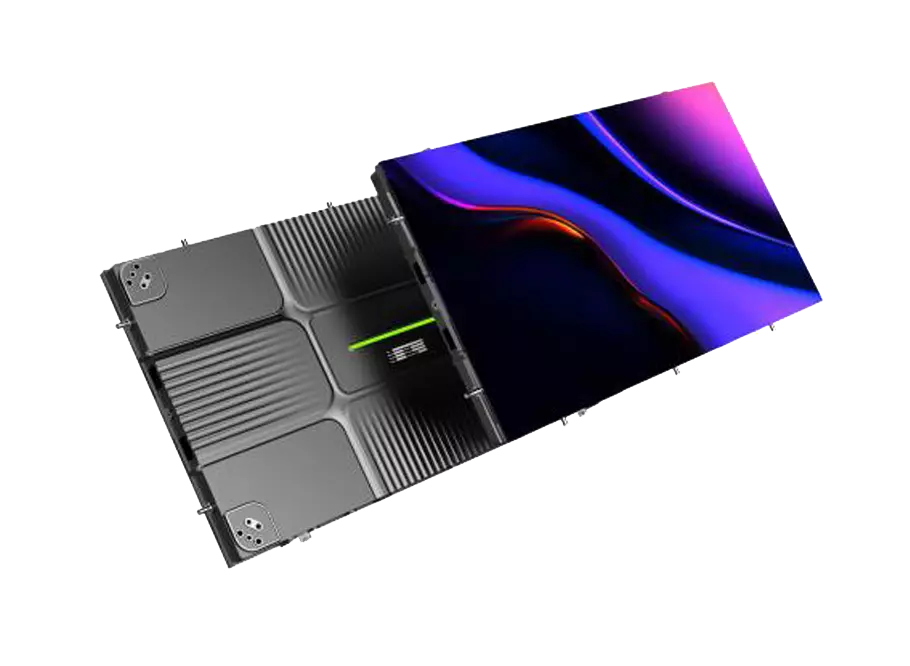

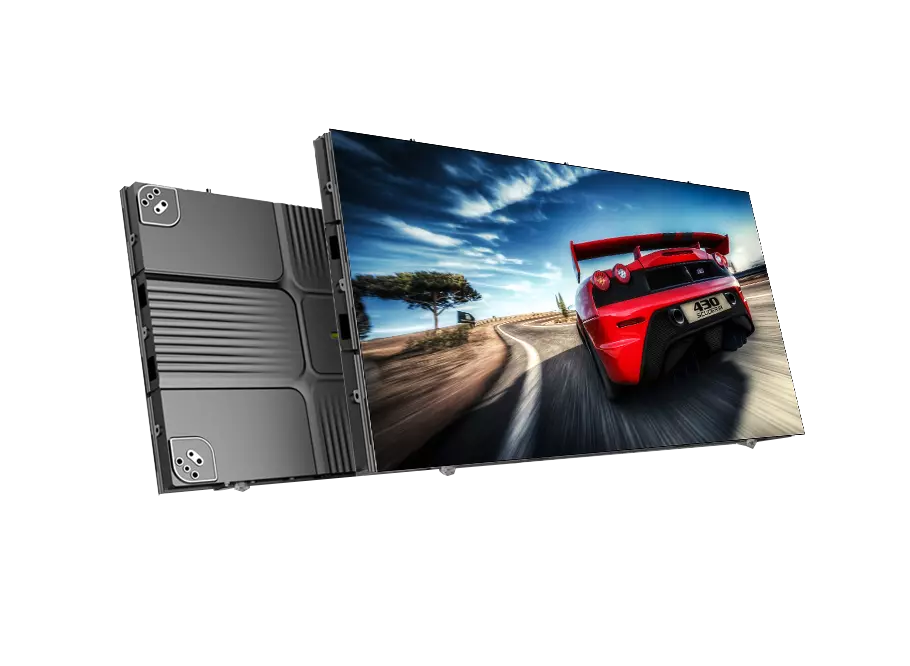

Indoor LED Display Fine-Pixel

Indoo Fixed LED Display Fine Pixel Series

Fine pixel pitch LED displays are pushing the boundaries of visual technology, delivering exceptional clarity and detail that redefine the viewing experience.

Indoor HD LED Display

Small Pixel Pitch LED Screen

Smaller Pixels, Greater Detail: Fine pixel pitch refers to LED displays with extremely small pixel spacing, typically measured in millimeters (mm).

Key Features & Benefits:

Exceptional Resolution: Delivering unparalleled image quality, perfect for displaying high-resolution graphics, intricate details, and even 4K and 8K content.

Immersive Viewing Experience: The enhanced clarity creates a more immersive and engaging experience for viewers, especially in close-up

Why Choose Ftyview LED Screen

LED Accesories

Products Parameters

The parameter table is part of the parameters, for more information, please contact us

Specifcations
  Model P 0.937 P 1.25 P 1.56 P 1.875
  Pixel Pitch 0.937mm 1.25 mm 1.56 mm 1.875 mm
  Pixel Configuration Four-in-one Gold Wire SMD1010 SMD1010 SMD1515
  Pixel Density(pixels/m²) 1,137,777 640,000 409,800l 284,444
  Module Size(mm) 150x168.75 150x168.75 150x168.75 150x168.75
  Module Resolution 160x180dot 160x180dot 96x108dot 80x90dot
  Cabinet Size(mm) 600x337.5 600x337.5 600x337.5 600x337.5
 Cabinet Resolution 640x360dot 480×270dot 384x216dot 320×180
 Gray Scale 16bit 16 bit 16 bit 16 bit
 Max Power Consumption 800W/m²
 Average Power Consumption 260W/m²
  Operating Temp/Humidity -20℃-60℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Brightness 600 - 800 nits
  Viewing Angle 140°/140°
  Expected LED Lifetime (Max) 100,000 Hrs

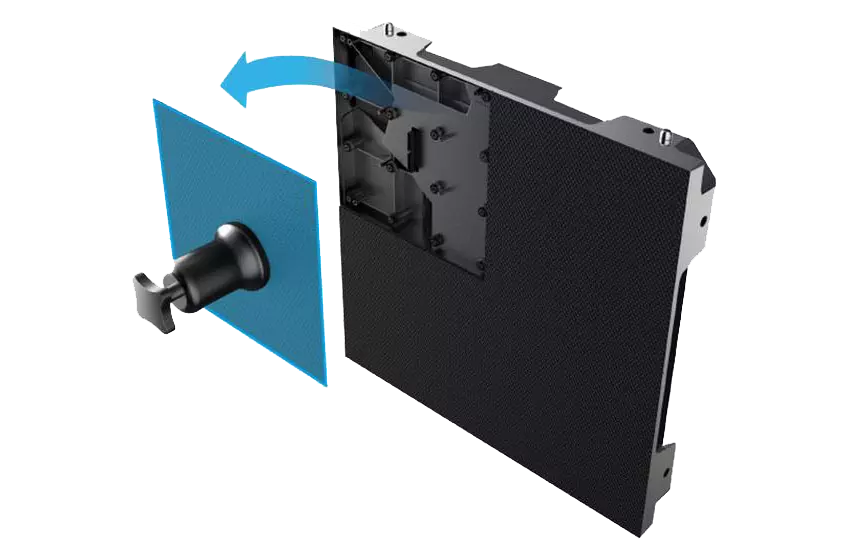

 Maintenance Front Service

Why choose us?

We have 20 years of LED display development, manufacturing and engineering construction experience, to provide customers with quality products and services.
