Outdoor Curtain LED Display

Curtain LED Display

Curtain LED displays, also known as LED curtains, offer a captivating combination of flexibility, visual impact, and creative potential. P10 | P16 | P 31.5 | P50

Key Features & Considerations:

Pixel Pitch: Determines the resolution and clarity of the display. Smaller pixel pitch = higher resolution.

Brightness: Measured in nits, with higher brightness ideal for applications with ambient light.

Protection Rating: IP rating indicates resistance to water and dust, important for outdoor or humid environments.

Connectivity: Typically use standard connectors for easy setup and configuration.

Power Supply: May require specialized power sources depending on the size and power consumption.



Energy saving, power consumption only 1/3 of the

High brightness and high efficiency, can be customized 15000cd/m2 high brightness screen.

Products Parameters

The parameter table is part of the parameters, for more information, please contact us

Specifcations
 Model No. P10 P16 P31.25 P50
  Pixel Pitch(mm) 8.34x12.5 16.67x16.67 31.25x31.25 50x50
  LED Arrangement SMD3535 SMD3535 SMD3535 SMD3535
  Pixel Density(pixels/m²) 9,600 3,600 1,240 400
 Cabinet Dimensions(mm) 1000x500 1000x500 1000x1000 1000x1000
 Transparency 30% 45% 70% 80%.
  Max. Consumption 600W/m² 600W/m² 550W/m² 550W/m²
  Ave. Consumption 180W/m² 180W/m² 180W/m² 180W/m²
 Brightness   6500nits  5500nits   5000nits 3000nits
 Brightness level 256Level 256Level 256Level 256Level
 Installation
Outdoor
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC

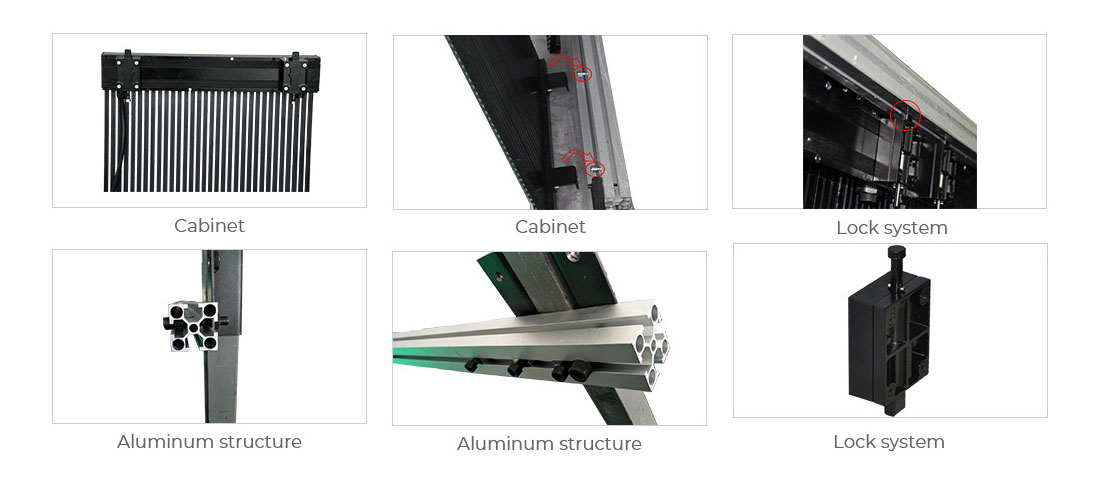

Ultra Slim and Thin Design

Thinnest part only 12mm, light to 16kg/sqm. It is 60% lighter & 50% thinner than traditional displays. Reduce massive load-bearing for installation, saving cost on transportation and installation. Permeability and low wind resistance, good for cooling and day lighting. Ventilation ensures strong wind load capacity, fan-less.

Why choose us?

We have 20 years of LED display development, manufacturing and engineering construction experience, to provide customers with quality products and services.
