Indoor LED Display Fixed Installation

Indoo LED Display Fixed Installation Series

Indoor fixed LED display is used indoors to show high-resolution images and video. It's often found in conference rooms, malls, and theaters for advertising and information.

Indoor HD LED Display

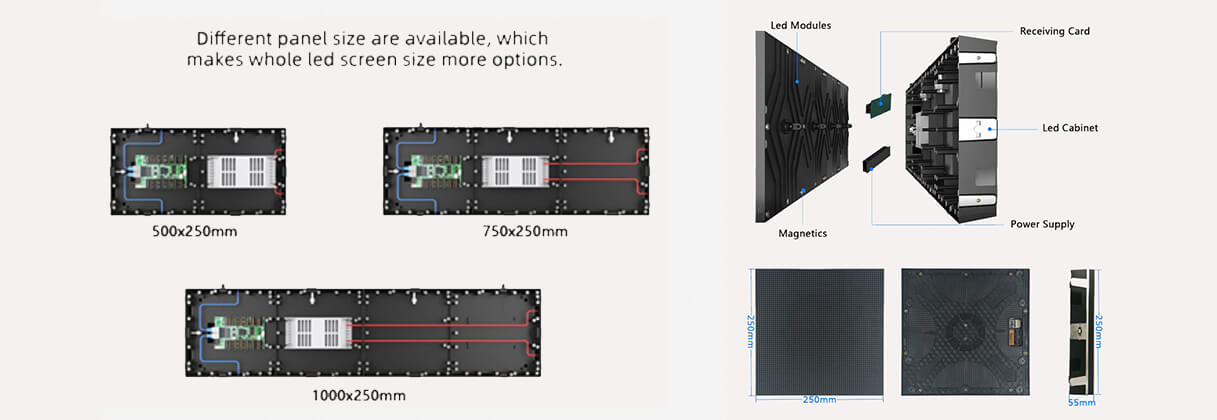

Indoor LED Display Fixed installation

Smaller Pixels, Greater Detail: Fine pixel pitch refers to LED displays with extremely small pixel spacing, typically measured in millimeters (mm).

Key Features & Benefits:

Exceptional Resolution: Delivering unparalleled image quality, perfect for displaying high-resolution graphics, intricate details, and even 4K and 8K content.

Immersive Viewing Experience: The enhanced clarity creates a more immersive and engaging experience for viewers, especially in close-up

Prodcuts Details

Products Parameters

The parameter table is part of the parameters, for more information, please contact us

Specifcations
  Model P 2 P 2.5 P 2.604 P 2.976 P 3.91 P 4.81 P 5.95
  Pixel Pitch 2mm 2.5mm 2.604mm 2.976mm 3.91mm 4.81mm 5.95mm
  Pixel Configuration SMD1515 SMD2020 SMD1515 SMD2020 SMD2020 SMD2020 SMD2020
  Pixel Density(pixels/m²) 250000 160000 147456 112896 65536 43264 28246
  Module Size(mm) 250x250 250x250 250x250 250x250 250x250 250x250 250x250
  Module Resolution 125x125dot 100x100dot 96x96dot 84x84dot 64x64dot 52x52dot 42x42dot
  Cabinet Size(mm) 500x500 500x500 500x500 500x500 500x500 500x500 500x500
 Cabinet Resolution 250x250dot 200x200dot 256x256dot 192x192dot 128x128dot 108x108dot 82x82dot
 Gray Scale 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
 Max Power Consumption 800W/m²
 Average Power Consumption 260W/m²
  Operating Temp/Humidity -20℃-60℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Brightness 600 - 800 nits
  Viewing Angle 140°/140°
  Expected LED Lifetime (Max) 100,000 Hrs
 Maintenance Front Service

Why choose us?

We have 20 years of LED display development, manufacturing and engineering construction experience, to provide customers with quality products and services.
